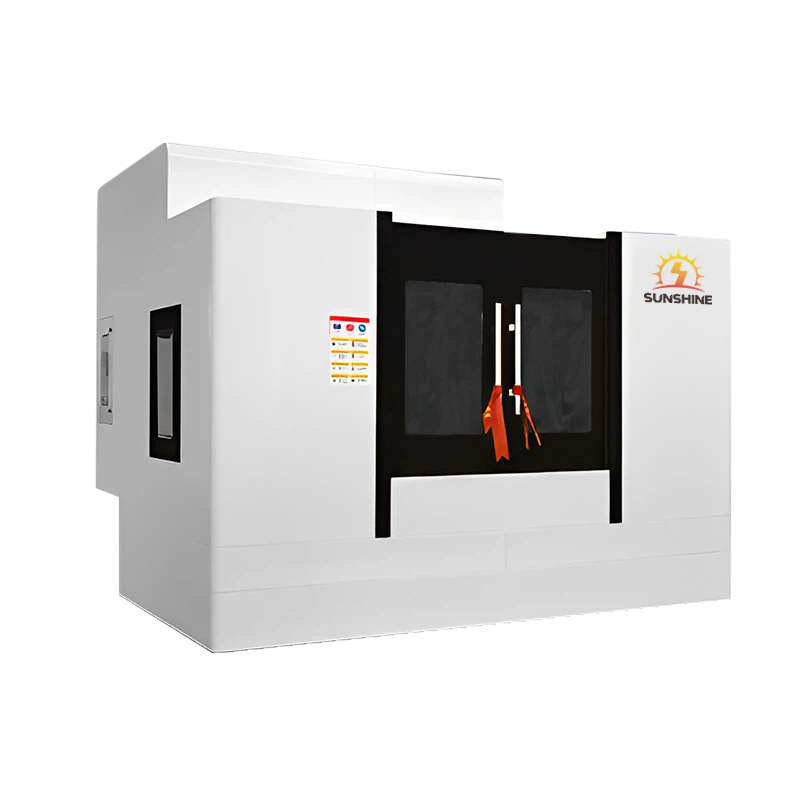

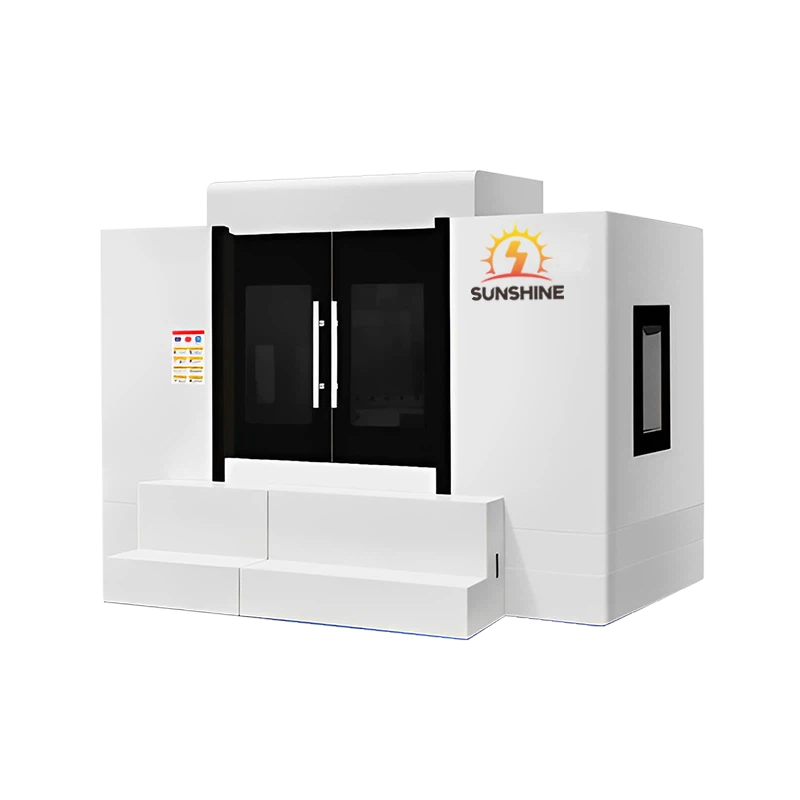

Sant machining orizontal pwisan ak fleksib
Pwodwi Deskripsyon
Sant D' orizontal gen yon pi gwo espas otomatik. Konpare ak sant D' vètikal, worktable sant D' orizontal plase orizontal, ki kapab akomode pièces de pi gwo gwosè ak pwa. Sa fè li posib pou konplete plizyè operasyon pwosesis gwo pyès sou yon sèl zouti machin, amelyore efikasite pwodiksyon an.
Sant D' orizontal tou gen bon operativité ak fleksibilite. Yo anjeneral ekipe ak sistèm CNC avanse ak koòdone opere, ki fasil yo opere ak fasil yo sèvi ak. An menm tan an, sant D' orizontal ka fè plizyè kalite operasyon D', tankou fraisage, perçage, raz, elatriye, pou satisfè bezwen otomatik diferan pièces. Anplis de sa, li posib tou pou adapte yo ak diferan travay D 'pa chanje zouti ak enstalasyon, kidonk amelyore fleksibilite nan liy pwodiksyon an.
| Modèl | HMC1075 | HMC1290 | HMC1395 | HMC1814 | Envèse T500 倒 T500 |
Envèse T630 倒 T630 |
| Gwosè tab la (mm) | 1300X600 | 1360X700 | 1400X700 | 2000X900 | 500*500 | 630*630 |
| Maksimòm chaj admisib (Kg) | 800 | 1000 | 1000 | 1600 | 600 | 950 |
| Vwayaj X-aks (mm) | 1000 | 1200 | 1200 | 1800 | 600 | 1050 |
| Vwayaj aks Y (mm) | 750 | 800 | 800 | 1280 | 360 | 750 |
| Z-aks vwayaj (mm) | 800 | 700 | 750 | 900 | 450 | 900 |
| t-plas | 5-18-105 | 5-18-122 | 5-18-122 | 5-22-165 | - | - |
| Distans soti nan figi fen file koton ak tab travay (mm) | 115-915 | 180-880 | 168-918 | 200-1100 | 150-850 | - |
| Distans ant sant file koton ak sifas gid Z-aks (mm) | 110-860 | 140-940 | 260-1060 | 140-1420 | 130-650 | 130-1030 |
| Cône spindle | BT50-150 | BT50-190 | BT50-190 | BT50-190 | BT40-150 | BT50-190 |
| Vitès koton (r/min) | 6000 | 6000 | 6000 | 6000 | 8000 | 6000 |
| X/Y/Z mouvman rapid (m/min) | 20/12/20 | 20/12/20 | 20/12/20 | 18/12/18 | 20/12/20 | 20/12/20 |
| Pwa machin (Kg) | 8000 | 10000 | 10000 | 15000 | 8000 | 10000 |
| Konfigirasyon estanda 标准配置 |
�% 97� FANUC Oi-MF PIuS发那科数控系统 ● 40 magazin zouti chèn/30 magazin zouti disk 40把链式刀库/30把圆盘式刀库 ● Otomatik chip transporteur自动排屑器 ● Taiwan 6000 rpm spindle台湾6000转主轴 |
|||||
| Si ou vle 选配 |
● CNC sistèm SIEMENS, HNC 数控系统 ● Alman ZF/ltalian BF bwat de-vitès德国ZF/意大利BF双速齿轮箱 ● Zouti sistèm refwadisman entèn刀具内冷却系统 ● Indexing abitrè tab rotary任意分度转台 |
|||||
